TROY INDUSTRIES

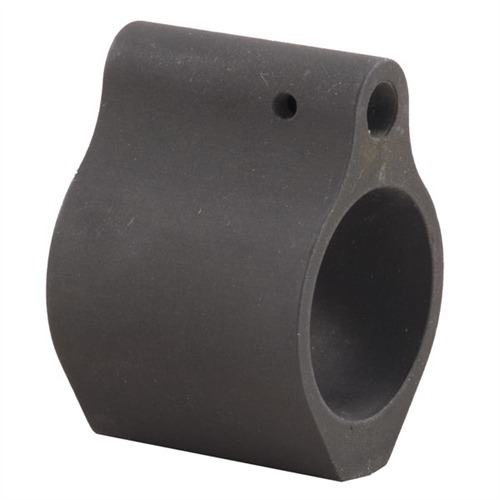

AR-15 GAS BLOCK LOW PROFILE

812699010136 100004062

Won't Interfere With Extended-Length Tactical Forearms

Minimal-profile replacement for factory front sight/gas block won t interfere with extended-length tactical forearms, while ensuring proper function of gas system for reliable cycling. Protrudes only .420" above barrel, covers less than 1" of barrel length, and adds only 1.4 oz. of weight. Compatible with M4-style carbines and M16A2/A3/A4-style rifles with any length, .750" O.D. barrel. Two steel setscrews keep the block securely anchored to the barrel to prevent shifting even under the force of full-auto recoil. Black oxide finish matches most factory barrel finishes.

SPECS: Carbon steel, oxide finish, matte black. .950 (24mm) long. 1.375 (3.5cm) overall height. 1.4 oz. (41g) weight. Fits AR-15/M16 with .750 O.D. barrel at gas block mounting position. Includes hex-head setscrews.

Más...

No Interferirá Con Antebrazos Tácticos de Longitud Extendida

Reemplazo de perfil mínimo para el bloque de mira/gas de fábrica que no interferirá con los antebrazos tácticos de longitud extendida, asegurando al mismo tiempo el correcto funcionamiento del sistema de gas para un ciclo confiable. Sobresale solo 0.420 pulgadas sobre el cañón, cubre menos de 1 pulgada de longitud del cañón y añade solo 1.4 oz. de peso. Compatible con carabinas estilo M4 y rifles estilo M16A2/A3/A4 con cualquier longitud de cañón de 0,750 pulgadas de diámetro exterior. Dos tornillos de acero mantienen el bloque firmemente anclado al cañón para evitar desplazamientos incluso bajo la fuerza del retroceso en modo automático completo. El acabado en óxido negro combina con la mayoría de los acabados de cañón de fábrica.

ESPECIFICACIONES: Acero al carbono, acabado en óxido, negro mate. 0,950 (24 mm) de largo. 1,375 (3,5 cm) de altura total. 1,4 oz. (41 g) de peso. Adecuado para AR-15/M16 con cañón de 0,750 pulgadas de diámetro exterior en la posición de montaje del bloque de gas. Incluye tornillos de cabeza hexagonal.

Más...

Evaluaciones de clientes para TROY INDUSTRIES AR-15 GAS BLOCK LOW PROFILE .750 STEEL BLACK

Número de evaluaciones: 13
De brownells.com: 13
Evaluación media: 3,9

Troy Low Profile Gas Block (30/12/2009)

I mounted this on a 16" Daniel Defense barrel.VERY low profile. The install was perfect. The tolerances were exact. Tight fit but slid on easily with no play. After firing there was NO leakage around the gas tube. Could have paid more but could not have gotten a better part.

Looks Great and Works (27/01/2013)

I research a number of gas block and decided on this one. Glad I did. I had a bit of a problem getting it to slide onto my S/S White Oak Wylde barrel, but after a bit of 600 emory it fits nice and looks great sitting just in front of my Hogue Rifle length OverMolded Free Float Tube.

Excellent Block (03/12/2013)

Very lightweight, secure mount, and high quality.

ID too tight! (26/01/2014)

Bought this for my son's first build. ID is too tight and won't even go 1/4 down the barrel. Tried a little grease, tapping with a block, way too tight.
Maybe I just was just unlucky, but I'll try another product first.

Junk (30/01/2015)

Too tight. wound up scratching the barrel and bending the gas tube getting this off because it did not fit correctly. Too tight for barrel and gas tube hole too small. Now have to order new gas tube and gas block. Threw it in the garbage. Checked other higher profile gas blocks I had on this barrel and gas tube and they fit no problem.

Priced right, easy to install (20/10/2015)

I bought this, having read about fitment issues. It was too tight to just slip onto two barrels I had handy, so I took a piece of emery cloth and a hand drill to the inside for all of 20 seconds. Even without oil, it fit easily, but not too loosely. I don't think that was a lot of effort, and it seals well to the port. If it needed to be machined, I would give it a different review. For the price, ease of installation, and function, this is a 5-star block.

Easy to install, nice fit (20/12/2015)

I installed the Troy gas block on my Smith & Wesson M&P15i to use with the Hogue forend soon to come from Brownells.

Had no issues whatsoever. Easy to slide on, easy to line up with the gas port. Great value for the money.

The most difficult part I had was punching out the pins holding the A2 front sight.

<img width="500" src='/userdocs/reviewimages/998827b4-13f3-4681-9711-49cb537120d4.jpg' alt=''>

<img width="500" src='/userdocs/reviewimages/f92e56b0-b258-4bb2-a370-7330df4dd2e1.jpg' alt=''>

Caliper Measurements (19/01/2016)

Here are some measurements that I took, for those of you that are curious:

The gas port hole is between 5.45-8.77mm when measured from one end to the other (from the shoulder). Any barrel with a gas port distance from the shoulder in this range will function (as long as the gas block journal is .750").

Overall height is 34.68mm/1.3655"

Width is 22.91mm/.902"

Length is 24.18mm/.952"

My closest estimate for the set screw distance is 9.75mm/.383". I'm very confident with this number, but it was hard to get an extremely precise measurement.

I put this on a Ballistic Advantage barrel 10.5" and it slid on easily. I have yet to fully install it though.

Fits a Ballistic Advantage Barrel (19/01/2016)

I put this on a 10.5 in Ballistic Advantage barrel BABL556005M and it slid right on. Some people have complained about it being too tight on other barrel brands, so I thought I would share my experience.

Awesome (27/05/2016)

Fit perfectly on my Rock River. Installation was a breeze and rifle cycling like it should. Fits well under small diameter BCM handgaurd

fit fine (25/08/2016)

I installed this on a DPMS barrel that I cerakoted and it fit just fine. it fit snug, just like it is supposed to.

Fits great. (05/10/2016)

Installed on a Criterion barrel with no issues. Everything lined up perfectly.

.004" Smaller than barrel (21/03/2017)

I don't normally use this product...a customer brought it to me to install, including several other parts. It was .004 undersize of the barrel...was not impressed. Will have to heat it to install it...shouldn't have to be that far off. Someone is not checking their machine setup it looks like.

Leer 13 mas calificaciones en brownells.com

64.9 64.9 1 EUR

N.º de producto: 100004062
TROY INDUSTRIES AR-15 GAS BLOCK LOW PROFILE .750 STEEL BLACK
Ref Fabricante: SGASA4L00BT00 812699010136 Reemplazo de perfil mínimo para el bloque de mira/gas de fábrica que no interferirá con los antebrazos tácticos de longitud extendida, asegurando al mismo tiempo el correcto funcionamiento del sistema de gas para un ciclo confiable. Sobresale solo 0.420 pulgadas sobre el cañón, cubre menos de 1 pulgada de longitud del cañón y añade solo 1.4 oz. de peso. Compatible con carabinas estilo M4 y rifles estilo M16A2/A3/A4 con cualquier longitud de cañón de 0,750 pulgadas de diámetro exterior. Dos tornillos de acero mantienen el bloque firmemente anclado al cañón para evitar desplazamientos incluso bajo la fuerza del retroceso en modo automático completo. El acabado en óxido negro combina con la mayoría de los acabados de cañón de fábrica.

64.9 EUR 8 64,90 € *

Plazo de entrega de aproximadamente 14-21 días.

Caracteristicas: Diametro interior: .750 Estilo: Low-Profile Hacer: AR-15 Material: Steel

Añadir a la lista de favoritos.

Preguntas

Detalles

Añadir a la lista de favoritos.

Preguntas

Top takeaways

Bloque de gas de perfil bajo que no interfiere con los antebrazos tácticos extendidos, asegurando el correcto funcionamiento del sistema de gas.
Compatible con carabinas estilo M4 y rifles estilo M16A2/A3/A4 con cañones de 0,750 pulgadas de diámetro exterior.
Fabricado en acero al carbono con acabado en óxido negro, añade solo 1.4 oz. de peso y se asegura con dos tornillos de acero.

Atributos

Diametro interior: .750 Estilo: Low-Profile Hacer: AR-15 Material: Steel Peso de entrega: 0,068kg Altura de envío: 10mm Ancho de envío: 69mm Longitud de envío: 97mm UPC : 812699010136
