BROWNELLS

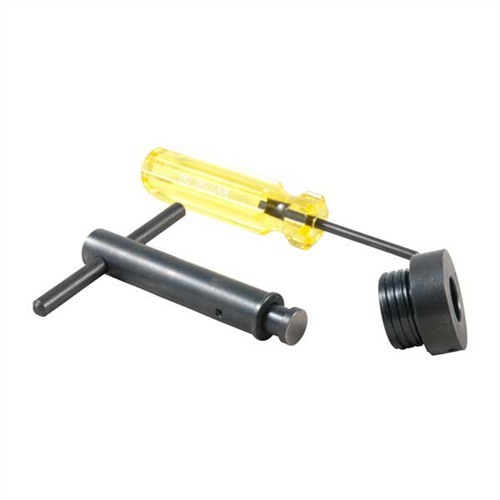

BOLT LAPPING TOOLS

050806008311 080097101

Interchangeable Design Gives Constant Spring Pressure For Precise Mating Of Locking Lug Recesses

Spring-loaded tool gives constant, straight-back pressure to keep bolt lugs square against the receiver while lapping with 600 to 800 grit, silicon carbide abrasive. Provides better results than mere thumb pressure. Interchangeable threaded sleeves fit popular actions listed below.

SPECS: 3¾" (9.5cm) long, ¾ lb. (340 g). M14/M1A Set sleeve includes large diameter plunger and special lapping handle required for these models. Mauser Large sleeve fits large ring Mauser actions. Mauser Small fits small ring Mauser actions. Savage Small sleeve fits Savage actions in all calibers except Rem Ultra Mag (RUM), Rem SA Ultra Mag (RSUM), and Win Short Mag (WSM). Savage Large sleeve fits Savage actions on ly in RUM, RSUM, and WSM calibers. One Gun Set contains bolt tool body, plunger, and correct size sleeve for model listed. M14/M1A One Gun Set contains bolt tool body, large diameter plunger, correct size sleeve, and special sleeve, and special bolt lapping tool unique to M14/M1A/M1 Garand only. Kit contains all tools necessary to lap all models listed in chart. */**Special price, see below.

Más...

Diseño Intercambiable Proporciona Presión Constante de Resorte Para un Acoplamiento Preciso de los Huecos de los Tetones de Bloqueo

Herramienta con carga de resorte que proporciona una presión constante y directa hacia atrás para mantener los tetones del cerrojo cuadrados contra el receptor mientras se realiza el bruñido con abrasivo de carburo de silicio de grano 600 a 800. Ofrece mejores resultados que la simple presión del pulgar. Las mangas roscadas intercambiables se adaptan a las acciones populares listadas a continuación.

ESPECIFICACIONES: 3¾" (9.5cm) de largo, ¾ lb. (340 g). El Set M14/M1A incluye una manga de gran diámetro y una manija especial de bruñido requerida para estos modelos. La manga Mauser Grande se ajusta a las acciones de Mauser de anillo grande. Mauser Pequeño se ajusta a las acciones de Mauser de anillo pequeño. Savage Pequeño se ajusta a las acciones de Savage en todos los calibres excepto Rem Ultra Mag (RUM), Rem SA Ultra Mag (RSUM) y Win Short Mag (WSM). La manga Savage Grande se ajusta a las acciones de Savage solo en calibres RUM, RSUM y WSM. El Set para Una Arma contiene el cuerpo de la herramienta para el cerrojo, el émbolo y la manga del tamaño correcto para el modelo listado. El Set M14/M1A para Una Arma contiene el cuerpo de la herramienta para el cerrojo, émbolo de gran diámetro, manga del tamaño correcto y una herramienta especial de bruñido única para M14/M1A/M1 Garand solamente. El Kit contiene todas las herramientas necesarias para bruñir todos los modelos listados en la tabla. */**Precio especial, ver abajo.

Más...

Evaluaciones de clientes para BROWNELLS 3-PIECE BOLT LAPPING KIT FOR M1A/M14

Número de evaluaciones: 1
De brownells.com: 1
Evaluación media: 5

Very nice fit of parts. (31/08/2015)

I bought this one-gun kit after trying to use the plunger body from the M14/M1/M1A kit. It did not fit a sleeve I had bought for the Large Ring Mauser. After receiving this kit with it's plunger body I then began trying all the parts one at a time.

Both plunger bodies are 0.5620" and the sleeves are 0.5625 except the M14, it was 0.563. There were little burrs on the plunger body of the M14 kit that made me think it would not fit the different sleeves. All fit well after a little lapping.

I plan on using the bolt lug lapping tool for several rifles I am building. After using the tool I believe I can use it to square the bolt face on a Mauser Large Ring VZ-24. After reaming the sleeve from existing 9/16" to a 5/8" I will press fit a drill bushing that is 5/8 x 3/8 and use the Mason Reamer Burr which has a 3/8" shaft. The Burr has been ground to 0.3740 to 0.3745. It has a buttery slip fit in the Drill Bushing.

Mauser threads are at a 55 deg pitch and not easy to find. Brownells sells the sleeve with the right threads for the '98 and the face truing Burrs. All you need is the drill bushing, the undersized drill, and the reamer to make the altered sleeve to be able to Lapp the lugs with the original unaltered sleeve, and true the face of your bolt with your altered sleeve. After, of course, you check that the receivers threads are true to the action. This can be checked with a mandrel which Brownells has too. This can be done for any rifle that Brownells has a sleeve for. Happy Gunsmithing, JL.

Leer 1 mas calificaciones en brownells.com

29.9 329.9 17 EUR

N.º de producto: 080097101
BROWNELLS 3-PIECE BOLT LAPPING KIT FOR M1A/M14 050806008311 Herramienta con carga de resorte que proporciona una presión constante y directa hacia atrás para mantener los tetones del cerrojo cuadrados contra el receptor mientras se realiza el bruñido con abrasivo de carburo de silicio de grano 600 a 800. Ofrece mejores resultados que la simple presión del pulgar. Las mangas roscadas intercambiables se adaptan a las acciones populares listadas a continuación.

149.9 EUR 2 149,90 € *

Plazo de entrega de aproximadamente 14-21 días.

Caracteristicas: Hacer: Springfield Modelo: M14, M1A, M1
