UNCLE MIKES
QUICK DETACH SWIVELS

043699159727 593159004

Descripción
Evaluaciones (7)

Quick Detachable; Positive Locking - The Industry Standard

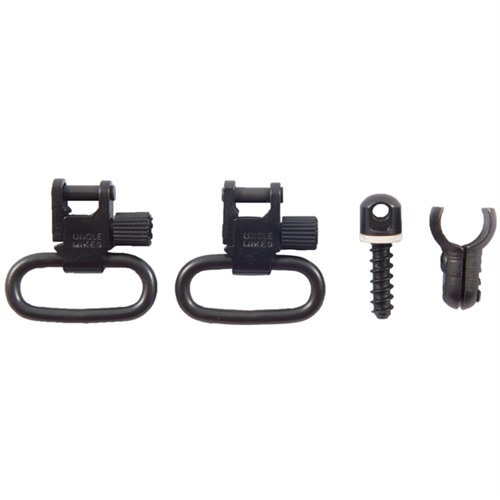

Split band clamps to magazine tube or barrel. Sets to fit Marlin lever actions and many shotguns. Includes 1" Super Swivels. Wood screw rear base also provided. Includes 1" Super Swivels. 1071-2 fits .420"-.470" dia. 1051-2 fits .540"-.590" dia.

SPECS: Before deciding which of the barrel, magazine tube or ferrule bands to use, you must first know the diameter of your barrel. Measure the barrel at the point of installation (usually 13"-17" forward of the trigger or 3"-4" ahead of the magazine or stock). All are Style A except 1331-2, 1341-2 and 1441-2 which are Style B.

Model #1 fits Browning BPR-22; Colt Colteer Autoloader .22; Harrington & Richardson 740 .22; High Standard .22 Carbines; Ithaca (Pre-’87) Deluxe; Iver Johnson EW 22 HBL & MHBL .22 Lever; Marlin 990, 40, 60, 75C, M-93TDS; Mossberg All .22’s w/Tube Magazine; Remington 552 A, 552 BDL, 552 C, 582, .22’s with Tube Magazine, 572, 572 A, 572 BD; Rossi (Interarms) Gallery .22 M59, 62; Savage/Stevens/Fox 80, 89, 90, .22’s w/Tube Mag. 246, 887, 887-T, 980-DL, 982, 982-DL, 982-MDL, 987, 987-T; Sears Automatic .22’s, Model 5 Lever Action; Thompson/Center Seneca, Cherokee; Western Field Bolt Action .22’s; Winchester 94/22 Series (All), 72, 150, 190, 290, Auto .22’s w/Tube Mag.

Model #2 fits Beretta Over/Under; Franchi All Over/Under, All Autos; Harrington & Richardson Springfield 171, 172, 174, 177, Topper 58, 98, 258, 162, 490, 490 Greenwing, 088, 088 Jr., Pumps; Marlin Single Barrels; Mossberg Topper 58, 98, 258, 162, 490, 490 Greenwing, 088, 088 Jr., Pumps; New England Firearms (H&R) Pardner 10 Gauge, 12 Gauge, 20 Gauge, .410 Gauge, Jr. .410 Gauge; New Haven (Mossberg) Bolt Action 283T, 485T, 495T; Parker-Hale 1000 All Over/Under; Remington 3200, Parker Single Barrel; Richland Arms 810 10 Gauge; Savage/Stevens/Fox FA-1, FP-1, 67 Series, 79 Series, 330, 330 Set, 333, 333-T, Stevens 94 Series, 675 Pump; Sears Single Barrels; SKB 100, 200, 280, 300, 400 and 480, 500, 600, 680 Over/Under; Smith & Wesson 916T pump; Thompson Center TCR ’83 & Contender carbine; Valmet Over/Under; Weatherby Athena O/U, Orion O/U, 82 Auto, 92 Pump, Centurion Auto., Patrician Pump, Regency O/U, Olympian; Western Field Single Barrels; Winchester O/Us, Single Barrels, 37A, 96, 1400, 1400 Mark II Autos, 1500 Series, Ranger Auto.

Model #3 fits Browning Jonathan Browning Mt. Rifle; Marlin 1894C, 1894CS; Rossi (Interarms) M92; Savage/Stevens/Fox 24 Series: 22LR/410, 24D 22LR/410.

Model #4 fits Browning B-92; Marlin 1894, 1894S, 25MB; Mossberg 479PCA, 479RR, 472SC, 679; Remington 76 pump; Savage/Stevens/Fox 242 O/U; Sears Model 54; Western Field 740; Winchester 64, 94 Series, 94 Big Bore.

Model #5 fits Browning Auto-Loading .22; FN-Sauer Bolt Action Rifle; Harrington & Richardson158, 1871; New England Firearms (H&R) Rifle/Shotgun Combo Gun; Parker-Hale 1000 M81 African; Remington 740, 760BDL Carbine (1969 & later); Savage/Stevens/Fox 23A; Winchester 88 Carbine.

Model #6 fits Browning Model 1886, Model 71; Ruger O/U 20 gauge

Model #7 fits Browning Model 1895; Ruger Redhawk.

Model #8 fits Harrington & Richardson 162, 1212; Savage/Stevens/Fox Semi-Automatics.

Model #9 fits Benelli SL121, SL123V, SL201 Other Auto Shotguns; Browning Auto 5, BPS, A500; Harrington & Richardson 440; High Standard Supermatics, Supermatic Flite King Deluxes, Flite Kings; Ithaca (Pre-’87) All Model 51’s (except 1983 and Later 51 Deerslayer), XL900, XL300 Autos; Ithaca Gun (1987 & later) 51 Deerslayer; Marlin 120, 778; Mossberg 3000, 10000, 712; Remington 870 Lightweight Ltd., 1100 Sp. Field, 11-87, 1100 Series, Other Autos, 870 Series, 870F, 870 Special Field, Sportsman 12, Other Pumps; Savage/Stevens/Fox Automatics; Sears Model 200 & 300; SKB 900 Auto, 7300 Pump; Smith & Wesson 916 pump & 3000 pump 5 Shot/Wood Stock w/o QD Bases; Tradewind (Husqvarna) 311A .22 Bolt Action; Western Field 550, 600; Winchester 1200, 1300, Ranger Pump, Spr X & Model 12, 59 old style 1200, 97 Riot.

Model #10 fits Heckler & Koch 1982 and later HK 270, HK 300, HK 630, HK 630D, HK 770, HK 770D, HK 940, SL6, SL7; Mossberg 1700 & 650K Chuckster, 900 Series, 910 Series, 321, 144, 341, 640K; New Haven (Mossberg) Centerfire 900 & 910 Series; Smith & Wesson 1700; Steyr Mannlicher 1975 & Earlier Model L, M, S. SL, S/T, SSG Marksman.

Más...

Evaluaciones de clientes para UNCLE MIKES 1597-2 W/1" LOOPS, BBL OD .700"-.750" SEE SPECS #6 FOR MODEL

Número de evaluaciones: 7
De brownells.com: 7
Evaluación media: 3,3

Works on a Winchester 1400 20ga shotgun (21/11/2015)

This fore end swivel base turned out to be my only available option of attaching a sling with Uncle Mike's swivels to a Winchester 1400 20ga shotgun. Other reviews had me concerned about the Allen screw stripping out but I took a chance. I repeatedly and carefully add the Allen screw to the point of resistance, back it out, and kept cleaning up the rough portion of the threads. It's now assembled (tricky but doable) and seems ok - it definitely looks good. If the Allen screw does fail, a Leupold torx screw in 8-40x.278 may be the replacement I'll need to get per other reviewers.

Needs fitting (22/11/2016)

Mounted on a Remington 7600. Barrel band fit good but there were two problems with the barrel band stud: 1) The diameter of the hollow screw was too small and had to be reamed out to fit the swivel, and 2) the radius of the stud was too large on the bottom, which prevented the swivel from swinging freely from front to back. I had to take a dremel tool and remove some material and re-blue the bare metal. Also, Uncle Mike's should include the more popular 1.25" swivels instead of the 1" size.

Great if you don't tighten too hard. (10/01/2018)

Fit perfectly on a blued Marlin 336A in 30-30. Did not fit once it was cerakoted. With some messing around, finally got the band to fit properly. Screwed it down too tight, screw started to unwind itself around the threads. Band and swivels are excellent, but I wish the screw was hardened.

<img width="500" src='/userdocs/reviewimages/3f267736-a39f-46b4-b58a-ea991f425dbd.jpg' alt=''>

Poor quality / defective product (12/01/2014)

I bought this product to put on a Browning BL-22, which has a .430" diameter magazine tube. I read a review on another web site that indicated the 1321-2 QD-115 was the correct size for the BL-22. Although the picture of this product shows two half ring bands to clamp to the magazine tube, this product has the full ring band that goes completely around the magazine tube.

The product comes with a small strip of plastic for a shim, that must be used for the band to tighten up on a .430" tube. I removed the mag tube from the gun and slid it out of the forearm. I spread the band very carefully and slid the tube back through band and into the forearm. I collapsed the band until the sling stud tabs touched and could tell immediately the plastic shim would be needed. I slid the band up to the shell loading opening in the mag tube and wrapped the plastic shim around the tube, and slid the band onto the plastic shim. I slid the band with the plastic shim down the tube to a couple inches above the forearm and attempted to start the hollow screw in the stud tabs. This is where the trouble began.

I could not get the screw started in the threads. I tried for at least 1/2 hour. I used a C-clamp with wood shims to squeeze the band as tightly as possible and get the sling stud tabs as close together as possible. No good.

The screw goes through one of the sling stud tabs and threads into the other tab, pulling the tabs together and tightening the band on the mag tube. The threaded tab is threaded all the way through, so I tried the screw on the back side of the threaded tab. It threaded right in, but it also revealed the problem. The hole through the threaded tab was drilled and tapped at an angle. It was easy to see with the screw started in the hole. I won't explain all the work I did to fix this issue, but it took a drill bit of .4375" diameter (7/16") and a vise and a couple hours, along with some sanding and re-bluing of the band. Could have sent it back, but I wanted it on the gun for the weekend. It's on there fairly good now...

I asked the chat person if Michaels of Oregon was the same as "Uncle Mikes" and was told it was not, but it is. I would have passed had I known this. I've had a few hammer spurs / extensions that had the tabs which fit on the underside of the hammer snap off after a few hammer falls. Also Uncle Mike's products.

Screw stripped out instantly (04/03/2014)

As others mentioned, the alen head screw for this strips out instantly. Mine actually stripped out after I tightened the clamp, and went to remove it about 15 seconds later. Even when it was as tight as I felt safe getting it, the clamp moved side to side on the mag tube. Regardless of that, it was useless due to the stripped alen head. I had to ram a small torx bit in there to get this piece of junk off of my rifle.

Perfect Easy Installation (12/07/2018)

I just installed this kit on my Henry H001TLB 22LR. Watched an install video before installing and it was easy and looks great. This kit will fit all H001T Henry 22LR models. Brownell's had the best price and free shipping. Great county!

1011-2QD-100 swivel set (17/02/2011)

I mounted a set of these on my 1903A3 back in about 1956 and used them for years on that rifle. Best set of sling swivels I have ever owned. Why? They rotate without losening the mounting screw and stripping out the wood, especially on the front swivel. All my rifles now have these swivels as they are the best if you are a hard hunter. I have never had one come loose.
