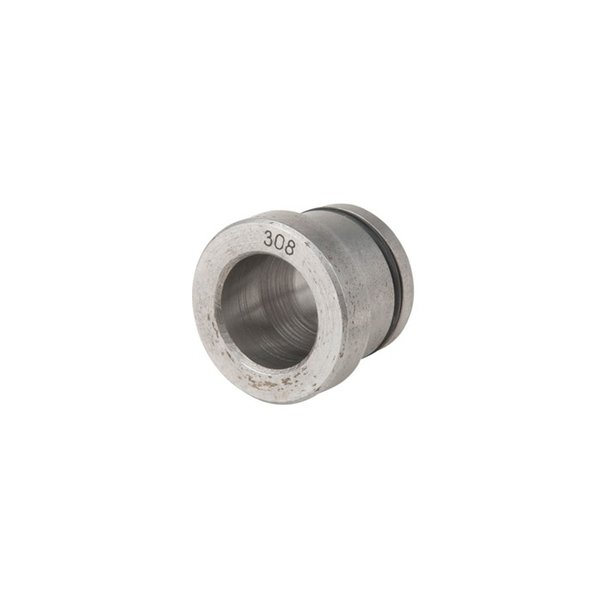

The WFT 2 is the next generation of WFT trimmers. The two main improvements are the ability to trim up to 45 caliber and interchange trim chambers. The WFT 2 has a half inch shaft and requires a half inch chuck to drive it. The feature most customers asked for was the ability to interchange trim chambers. Instead of press fitting the trim chambers, like the original WFT, the trim chambers on the WFT 2 are a slight slip fit in bearing with a groove cut for an O-ring which creates a press fit. Changing out trim chambers is accomplished by removing the cutter and pushing out the trim chamber with the knock-out dowel that is provided. Installing the trim chamber is accomplished by setting the trim chamber on a flat surface and steadily pushing the housing onto the trim chamber. Setting the cutter depth is easily adjusted by placing a “master case” in the trim chamber and sliding the cutter up to the case mouth and tightening down the set screws. Trimming is just as precise and clean as with our original trimmer. The trim chamber selection on the WFT 2 is by specific cartridge, but still trims by case family-just order the largest chamber in the family that you intend to trim. This unit and its inserts do not chamfer or deburr the case moouth of the cartridge case as it is trimmed. If you can't find the cartridge you need, please contact our Special Order Department at 800-741-0015
El WFT 2 es la próxima generación de los trimmers WFT. Las dos principales mejoras son la capacidad de recortar hasta el calibre .45 y la posibilidad de intercambiar las cámaras de recorte. El WFT 2 tiene un eje de media pulgada y requiere un chuck de media pulgada para hacerlo funcionar. La característica que más pidieron los clientes fue la capacidad de intercambiar las cámaras de recorte. En lugar de encajar a presión las cámaras de recorte, como en el WFT original, las cámaras de recorte del WFT 2 tienen un ajuste de deslizamiento en el cojinete con una ranura cortada para un O-ring que crea un ajuste a presión. Cambiar las cámaras de recorte se logra retirando el cortador y empujando la cámara de recorte con el pasador de extracción que se proporciona. Instalar la cámara de recorte se logra colocando la cámara de recorte sobre una superficie plana y empujando suavemente la carcasa sobre la cámara de recorte. La profundidad del cortador se ajusta fácilmente colocando un “caso maestro” en la cámara de recorte y deslizando el cortador hasta el borde del caso y apretando los tornillos de ajuste. El recorte es tan preciso y limpio como con nuestro trimmer original. La selección de cámaras de recorte en el WFT 2 es por cartucho específico, pero aún recorta por familia de casos; simplemente ordena la cámara más grande de la familia que pretendes recortar. Esta unidad y sus insertos no chaflan ni desbarban el borde del caso del cartucho mientras se recorta. Si no puedes encontrar el cartucho que necesitas, por favor contacta a nuestro Departamento de Pedidos Especiales al 800-741-0015.
