Eliminates Lateral Movement Of The Disconnector For A Tighter, Cleaner Trigger Pull

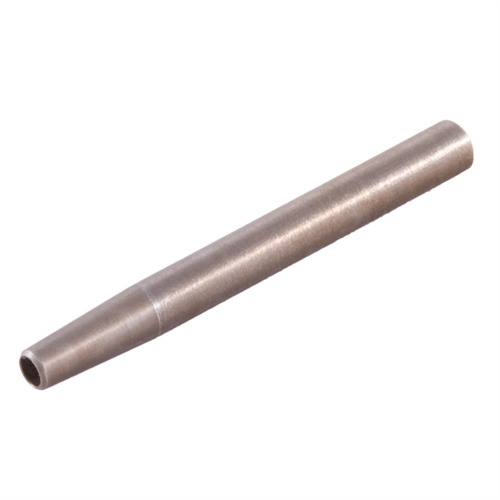

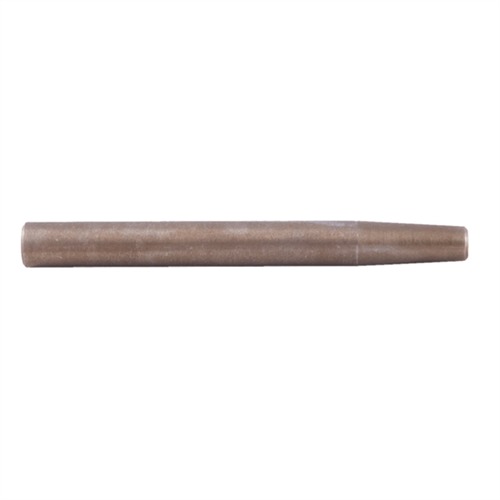

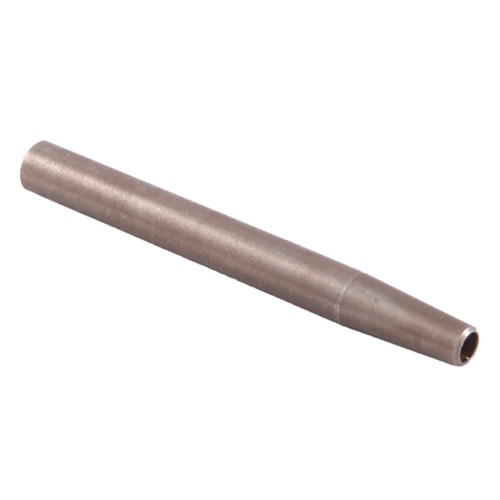

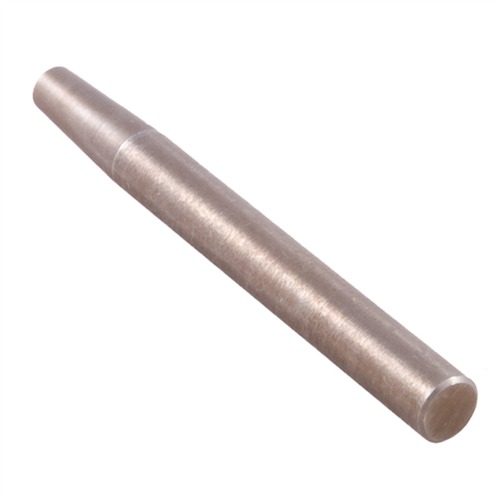

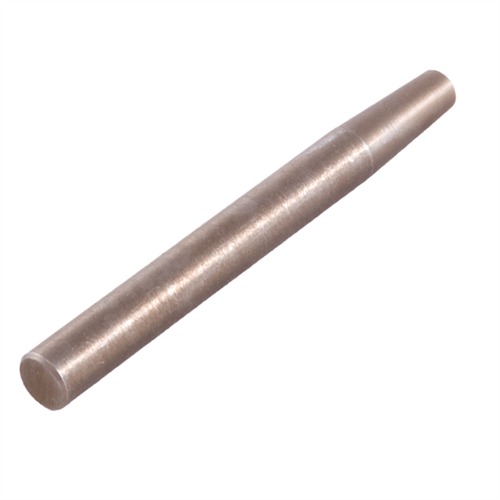

Steel punch reduces the size of the disconnector hole in the frame to prevent lateral movement of the disconnector and help eliminate creep from the trigger pull. Use as part of any accurizing or trigger job to produce a smoother, more precise pull and cleaner release. Concave tip ensures controlled application of staking force by letting you use the tool with the disconnector in place to help keep the tip centered on the frame hole.
SPECS: Tool steel hardened to Rc 58-60. 3" (7.6cm) long. Includes instructions.
Más...
Elimina el Movimiento Lateral del Desconector para un Tirón del Disparador Más Ajustado y Limpio
Este punzón de acero reduce el tamaño del orificio del desconector en la empuñadura para prevenir el movimiento lateral del desconector y ayudar a eliminar la holgura en el disparador. Úsalo como parte de cualquier trabajo de precisión o ajuste del disparador para lograr un tirón más suave, más preciso y un desenganche más limpio. La punta cóncava asegura una aplicación controlada de la fuerza de remachado permitiéndote usar la herramienta con el desconector en su lugar para ayudar a mantener la punta centrada en el orificio de la empuñadura.
ESPECIFICACIONES: Acero de herramienta endurecido a Rc 58-60. 3" (7.6cm) de largo. Incluye instrucciones.
Más...
Evaluaciones de clientes para BROWNELLS 1911 DISCONNECTOR STAKING TOOL
Número de evaluaciones: 1
De brownells.com: 1
Evaluación media: 5
This product is World Class(22/05/2010)
I recently had to fit a disconnector in a frame with a very large (oversized/out of spec) disconnector hole. Normal procedure would be to place many dimples along the perimeter of the hole, hoping to reduce its I.D. sufficiently. However, I just bought this product and gavve it a try. Simply place the disconnector in the mating frame hole, from the underside. Holdi ng it in place with a finger tip. place this staking tool over the top of the plunger to center it on the hole. Give a fgew modest taps and remove the staking tool to ensure that its starting groove is concentric. Next, replace the tool and give it a few significant taps with your hammer. The result was a perfectly concentric hole which was uniformly reduced in its I.D. Next, place a tapered alignment punch in the hole (from the top side and give it a few very light taps to reopen it just enought. When removing the punch, roptate it while pulling it out. The will give you a burr free and very concentric hole. This tool ranks up there, along with sliced bread! It is that good!
N.º de producto: 080000691 BROWNELLS 1911 DISCONNECTOR STAKING TOOL050806109735 Este punzón de acero reduce el tamaño del orificio del desconector en la empuñadura para prevenir el movimiento lateral del desconector y ayudar a eliminar la holgura en el disparador. Úsalo como parte de cualquier trabajo de precisión o ajuste del disparador para lograr un tirón más suave, más preciso y un desenganche más limpio. La punta cóncava asegura una aplicación controlada de la fuerza de remachado permitiéndote usar la herramienta con el desconector en su lugar para ayudar a mantener la punta centrada en el orificio de la empuñadura.
Eliminates Lateral Movement Of The Disconnector For A Tighter, Cleaner Trigger Pull
Steel punch reduces the size of the disconnector hole in the frame to prevent lateral movement of the disconnector and help eliminate creep from the trigger pull. Use as part of any accurizing or trigger job to produce a smoother, more precise pull and cleaner release. Concave tip ensures controlled application of staking force by letting you use the tool with the disconnector in place to help keep the tip centered on the frame hole.
SPECS: Tool steel hardened to Rc 58-60. 3" (7.6cm) long. Includes instructions.
Más...
Elimina el Movimiento Lateral del Desconector para un Tirón del Disparador Más Ajustado y Limpio
Este punzón de acero reduce el tamaño del orificio del desconector en la empuñadura para prevenir el movimiento lateral del desconector y ayudar a eliminar la holgura en el disparador. Úsalo como parte de cualquier trabajo de precisión o ajuste del disparador para lograr un tirón más suave, más preciso y un desenganche más limpio. La punta cóncava asegura una aplicación controlada de la fuerza de remachado permitiéndote usar la herramienta con el desconector en su lugar para ayudar a mantener la punta centrada en el orificio de la empuñadura.
ESPECIFICACIONES: Acero de herramienta endurecido a Rc 58-60. 3" (7.6cm) de largo. Incluye instrucciones.
Más...
Evaluaciones de clientes para BROWNELLS 1911 DISCONNECTOR STAKING TOOL
Número de evaluaciones: 1
De brownells.com: 1
Evaluación media: 5
This product is World Class(22/05/2010)
I recently had to fit a disconnector in a frame with a very large (oversized/out of spec) disconnector hole. Normal procedure would be to place many dimples along the perimeter of the hole, hoping to reduce its I.D. sufficiently. However, I just bought this product and gavve it a try. Simply place the disconnector in the mating frame hole, from the underside. Holdi ng it in place with a finger tip. place this staking tool over the top of the plunger to center it on the hole. Give a fgew modest taps and remove the staking tool to ensure that its starting groove is concentric. Next, replace the tool and give it a few significant taps with your hammer. The result was a perfectly concentric hole which was uniformly reduced in its I.D. Next, place a tapered alignment punch in the hole (from the top side and give it a few very light taps to reopen it just enought. When removing the punch, roptate it while pulling it out. The will give you a burr free and very concentric hole. This tool ranks up there, along with sliced bread! It is that good!
