BROWNELLS
1911 PLUNGER TUBE STAKING TOOL

050806110762 080001091

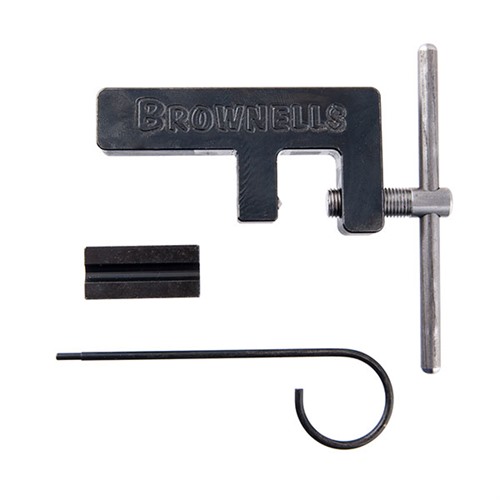

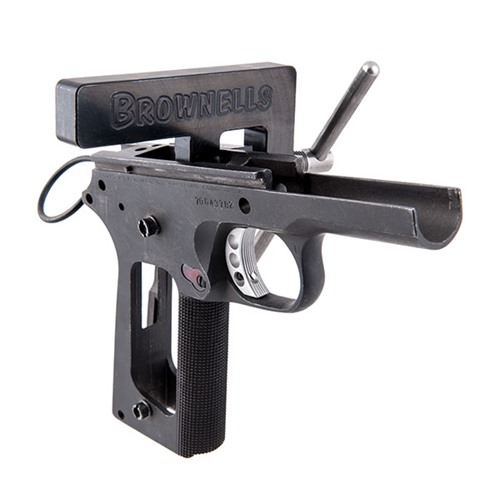

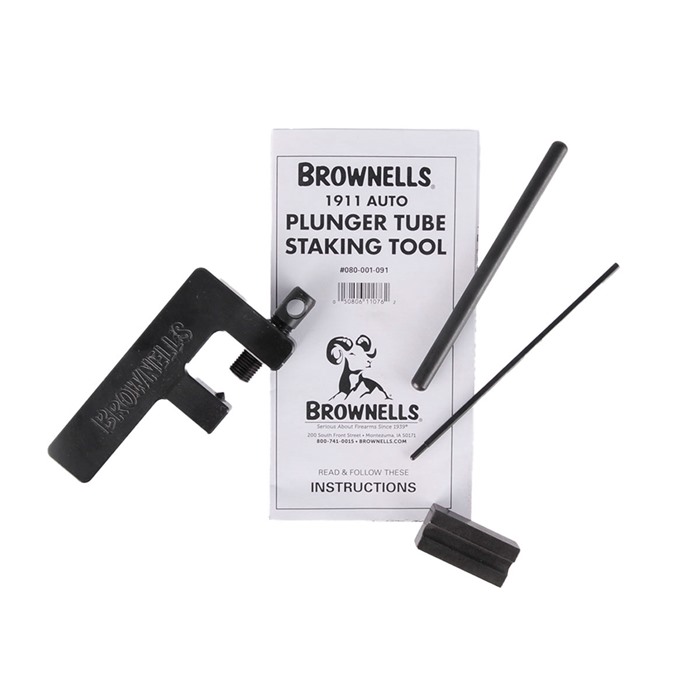

The Brownells 1911 Plunger Tube Staking Tool is essential for any pistol smith. The easy-to-use design lets you secure the plunger tube to the frame without fear of tube crush or expensive frame damage. The Plunger Tube Support slips inside plunger tube and prevents compression damage while tube is being staked to frame. Adjustable to fit all makes of frames and tubes for both installing and re-tightening. The NEWER design includes a 10-32 screw with hardened crimping point assures long tool life. The support and hardened staking screws for the newer and older staking tool are available for individual sale. The Brownells 1911 Plunger Tube Staking Tool includes: Staking Tool, Anvil, Plunger Tube Support, Staking Tool Handle, Hardened 10-32 Crimping Tip, and Instructions. 1911 Plunger Tube Support Only Brownells Part Number: 080707000 10-32 TPI Crimper Tip Only Brownells Part Number: 080806100 8-32 TPI Crimper Tip Only Brownells Part Number: 080806101

Más...

Su diseño fácil de usar te permite asegurar el tubo del émbolo al armazón sin temor a aplastar el tubo o dañar costosamente el armazón. Ajustable para adaptarse a todos los modelos de armazones y tubos, tanto para instalaciones como para reajustes. El punto de engarzado endurecido garantiza una larga vida útil de la herramienta. El soporte del tubo del émbolo se desliza dentro del tubo del émbolo y evita daños por compresión mientras el tubo se está fijando al armazón. La construcción de acero proporciona una estructura rígida y muchos años de uso.

Más...

Evaluaciones de clientes para BROWNELLS 1911 PLUNGER TUBE STAKING TOOL

Número de evaluaciones: 5
De brownells.com: 5
Evaluación media: 4

Solid Quality (03/09/2015)

This is a solid, quality tool that is easy to use. It took more time unpacking it than it took to stake the plunger tube. To avoid fumbling I put the frame in a soft jaw vise. Arrange a portable light to illuminate the inside of the frame to aid in getting the anvil on the pin(s) first try. I also put a piece of tape over the plunger tube as a precaution to protect the fresh Cerakote finish.

As a bonus this tool works great as a carrier dog pin staking tool on Remington 870/1100/1187 shotguns.

1911 Plunger Tube Staking Tool (27/10/2015)

I purchased this tool to re-stake the loose plunger tube on a 1911 Colt. This is a very well made and heavy duty tool that should last many years. Use was very straightforward and simple. Not counting the pistol disassembly time I would say it took about 3 minutes to mount and re-stake the two plunger tube pins. Nothing not to like about this tool.

needs work (08/12/2015)

needs work, the hardness of the staking tip is week. I crushed two so far.

Tip Not Hardened (30/07/2015)

It looks like the tool should work well. It did not work for me because the tip supplied to crimp was not hardened and simply deformed without crimping. The tip was so soft the threads and hex socket head failed when I attempted to remove it from the base after first use.

It should be possible to reshape and case harden a standard 10-32 x 5/16 set screw ($0.25) with more threads that may be more durable if the replacement tip doesn't work at $4.00 (wish I had been offered a free replacement when I called to discuss). The photo shows how the tip deformed to hole dimensions instead of crimping.

<img width="500" src='/userdocs/reviewimages/d7a2ac70-0b52-4185-bbe9-7161b58979e4.jpg' alt=''>

Should have this (30/10/2009)

Works as advertised. As I was crimping the plunger tube, I did indeed feel the Staking Support become temporarily seized inside the plunger tube. However, when the pressure from the crimper was relieved, the Staking Support slid out of the plunger tube easily. A little expensive, but it does prevent damage to the plunger tube, which also saves time and frustration.

Leer 5 mas calificaciones en brownells.com

99.9 99.9 1 EUR

N.º de producto: 080001091
BROWNELLS 1911 PLUNGER TUBE STAKING TOOL 050806110762 Su diseño fácil de usar te permite asegurar el tubo del émbolo al armazón sin temor a aplastar el tubo o dañar costosamente el armazón. Ajustable para adaptarse a todos los modelos de armazones y tubos, tanto para instalaciones como para reajustes. El punto de engarzado endurecido garantiza una larga vida útil de la herramienta. El soporte del tubo del émbolo se desliza dentro del tubo del émbolo y evita daños por compresión mientras el tubo se está fijando al armazón. La construcción de acero proporciona una estructura rígida y muchos años de uso.

99.9 EUR 27 99,90 € *
