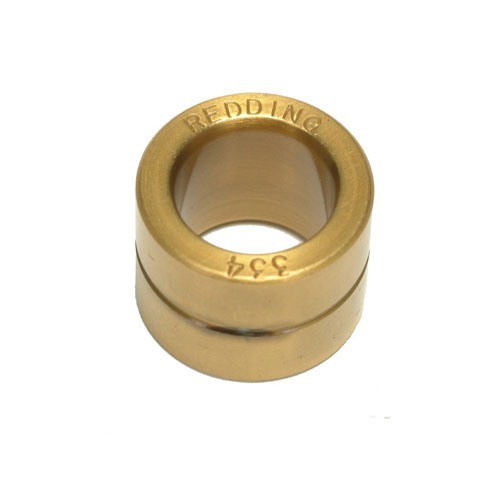

Heat treated steel bushings as above, but with the addition of a Titanium Nitride coating to further increase the effective surface hardness and reduce sizing friction. Bushings are available throughout the range of .185" thru .368" in .001" increments. The last three digits of the part (#RD76XXX) denotes bushing size. .185 to .252 .253 to .305 .306 to .368
Determining Redding Bushing Size
The proper bushing size can be easily determined by measuring the outside neck diameter of your loaded cartridges with a precision micrometer or a dial caliper. Then, simply subtract .001" from the cartridge that had the smallest average neck diameter. This diameter bushing will generally size case necks just enough to create the proper press fit for the bullet.
If you are using a Type “S” style die and not turning the outside of your case necks, we suggest using a bushing .002" smaller than your smallest average neck diameter, and using the expander ball included with your Type “S” die. This size bushing will still give you minimal sizing (maximizing the life of your brass) and the expander ball will insure that each cartridge has the same bullet grip.
Redding has found that when you have cases with neck wall thicknesses on the thin side of the SAAMI tolerance, your fired case will measure considerably larger (.006" to .010" larger) than your loaded rounds. In these circumstances, Redding’s tests have shown that a bushing .001" larger (than the loaded round) may give you the desired bullet grip.
Bujías de acero tratadas térmicamente como las anteriores, pero con la adición de un recubrimiento de Titanio Nitruro para aumentar aún más la dureza superficial efectiva y reducir la fricción de ajuste. Las bujías están disponibles en todo el rango de .185" a .368" en incrementos de .001". Los últimos tres dígitos de la pieza (#RD76XXX) indican el tamaño de la bujía. .185 a .252 .253 a .305 .306 a .368
Determinando el Tamaño de la Bujía Redding
El tamaño adecuado de la bujía se puede determinar fácilmente midiendo el diámetro exterior del cuello de tus cartuchos cargados con un micrómetro de precisión o un calibrador de dial. Luego, simplemente resta .001" del cartucho que tuvo el diámetro de cuello promedio más pequeño. Este diámetro de bujía generalmente ajustará los cuellos de los casquillos lo suficiente para crear el ajuste adecuado para la bala.
Si estás utilizando un die de tipo “S” y no estás girando el exterior de los cuellos de tus casquillos, te sugerimos usar una bujía .002" más pequeña que tu diámetro de cuello promedio más pequeño, y usar la bola expansora incluida con tu die de tipo “S”. Este tamaño de bujía aún te dará un ajuste mínimo (maximizando la vida de tu latón) y la bola expansora asegurará que cada cartucho tenga el mismo agarre de bala.
Redding ha encontrado que cuando tienes casquillos con grosores de pared del cuello en el lado delgado de la tolerancia SAAMI, tu casquillo disparado medirá considerablemente más grande (.006" a .010" más grande) que tus rondas cargadas. En estas circunstancias, las pruebas de Redding han demostrado que una bujía .001" más grande (que la ronda cargada) puede darte el agarre de bala deseado.
