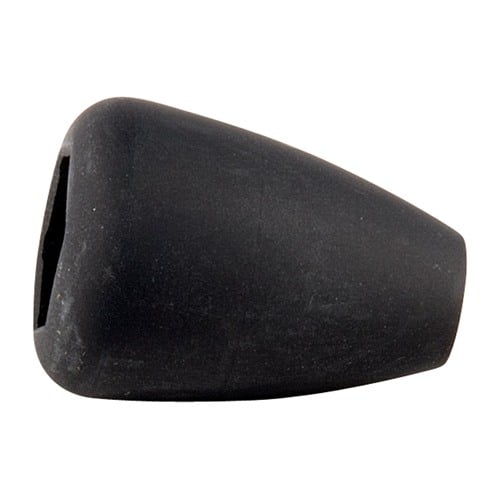

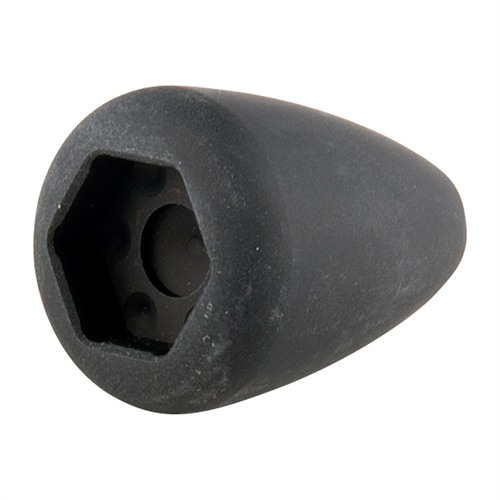

Oversize diameter and extended length and give positive bolt control for fumble-free cycling of tactical and benchrest rifles. No more holding the bolt handle with two fingers to clear the scope bell. Provides additional leverage needed to clear stuck rounds. Lightweight aluminum keeps weight down. Installation requires machining and threading of original bolt handle. Mini bolt knob includes ½” wrench for scope removal.
SPECS: 7075 T6 aluminum alloy, hardcoat anodized, matte black or gloss red finish. 1½" (4cm) long, .975" (24.7mm) diameter. 1.3 oz. (35 g) weight. Mini - Length – 1.21” Diameter – 0.90” Weight – 0.5 oz Gunsmith installation recommended. 5/16-24 TPI.
Más...
Pomo Extendido de Fácil Agarre para un Ciclado Positivo del Cerrojo
El diámetro sobredimensionado y la longitud extendida proporcionan un control positivo del cerrojo para el ciclo sin errores de rifles tácticos y de banco de tiro. No más sujetar la manija del cerrojo con dos dedos para evitar el alcance de la campana. Proporciona la palanca adicional necesaria para despejar cartuchos atascados. El aluminio ligero mantiene el peso bajo. La instalación requiere mecanizado y roscado de la manija original del cerrojo. El pomo del cerrojo Mini incluye una llave de ½” para la extracción del alcance.
ESPECIFICACIONES: Aleación de aluminio 7075 T6, anodizado duro, acabado mate negro o rojo brillante. 1½" (4cm) de largo, .975" (24.7mm) de diámetro. Peso de 1.3 oz. (35 g). Mini - Longitud – 1.21” Diámetro – 0.90” Peso – 0.5 oz Se recomienda instalación por un armero. 5/16-24 TPI.
Más...
Evaluaciones de clientes para BADGER ORDNANCE MINI TACTICAL BOLT KNOB
Número de evaluaciones: 7
De brownells.com: 7
Evaluación media: 4,9
Mini Tactical Bolt handle(17/06/2013)
Great product, fitted onto my Rem 700 in .204 to help with clearance from scope when cycling action. Had previously had a look at full sized knobs but they didn't fit with the look and function I was chasing. If you are half capable, the job can be done at home with a hacksaw, file and die of the correct thread size. I will be purchasing a couple more for both my long range rig and target rifle, which has a particularly stiff bolt after firing.
More leverage than ever.(15/09/2009)
This is a must for anyone. Not only tactical shooters. This knob allows you to remove stuck cases better, faster cycling on the bolt and an overall easier grip.
i was looking for something to replace the standard bolt knob on my remington 700P and had seen several rifles with this knob on them, and decided i wanted something similar. after looking at what all was available i decided on this one because of the size dimensions and shape.
i ordered through brownells and got a fantastic price and they were the only place that had them in stock. kudos to brownells on that.
after getting my bolt back from AZ Precision, and taking it to the range, i have to say this bolt makes a HUGE difference. working the bolt is easier as the knob is far easier to get a hold of and fits my hand a lot better, the length of the bolt handle is extended by over an inch giving you better leverage, and since the knob is aluminum it doesnt at any weight! it is PERFECT for the serious shooter looking for a way to improve the function of their rifle. it makes rapid bolt manipulation so much easier you wont beleive it until you feel it for yourself.
This is a very affordable and very great upgrade, and this particular part, from this seller at this price is just fantastic. cannot be beat!
I have recommended this to three other friends who have long rifles and all will be purchasing and having this installed based on how well it works on mine.
Great Product(07/12/2009)
Put it on 2 of my rifles exellent quality and also very good looking but the most important thing is it holds very well against the elements.
A HELP IN TACTICAL AND HUNTING(24/01/2010)
This knob is the defacto standard when going with an over sized bolt knob. Better leverage for opening the bolt in any situation. I installed the knob myself but this should really be installed by someone what has a mil and knows what he is doing. A lot of material has to be removed and a mil works so much better than the belt sander I used. It took about 2+ hours and is not for the inexperienced or faint of heart. The original bolt must be "made round" (.313) then threaded with approx. 1/2 inch removed from the end of the bolt handle so the new knob can be screwed and glued on all the way. When finished you will be pleased with the looks,feel and ease of use.
Excellent addition to a bolt gun(27/02/2010)
I recently installed this product on my sniper rifle and could not be happier with the outcome. I installed the knob myself using a combination of a dremel tool with a reinforced cutting wheel, bench grinder and hand files. It took me slightly less than an hour and a half to complete the alteration to the bolt handle. Definitely not for the inexperienced to install. This is a great addition to the Remington weapon system.
A well designed, quality product....!(18/12/2010)
I installed this bolt knob on a customer's M77 SS bolt handle. The cast SS Ruger bolt handle was tough to machine and thread but the final result was spectacular. These knobs were designed for the Remington 700 but I have used them successfully on many different makes of rifle bolts. I would recommend this product be installed by a qualified machinist or gunsmith to achieve the best results.
N.º de producto: 093000045 BADGER ORDNANCE MINI TACTICAL BOLT KNOB Ref Fabricante: 306-74 El diámetro sobredimensionado y la longitud extendida proporcionan un control positivo del cerrojo para el ciclo sin errores de rifles tácticos y de banco de tiro. No más sujetar la manija del cerrojo con dos dedos para evitar el alcance de la campana. Proporciona la palanca adicional necesaria para despejar cartuchos atascados. El aluminio ligero mantiene el peso bajo. La instalación requiere mecanizado y roscado de la manija original del cerrojo. El pomo del cerrojo Mini incluye una llave de ½” para la extracción del alcance.
El pomo del cerrojo Mini proporciona un control positivo del cerrojo y palanca adicional para despejar cartuchos atascados.
Fabricado en aleación de aluminio 7075 T6, anodizado duro, con acabado mate negro o rojo brillante.
La instalación requiere mecanizado y roscado de la manija original del cerrojo; se recomienda instalación por un armero.
Atributos
Acabado:
Black
Hacer:
Remington
Mano:
Ambidiestro
Peso de entrega: 0,023kgAltura de envío: 38mmAncho de envío: 40mmLongitud de envío: 80mm
Detalles del artículo
Hecho en USA
Clasificación de exportación de EE. UU.: 0A501.x
Estos artículos están controlados por el gobierno de los EE. UU. Y autorizados para exportar solo al país de destino final para que los utilicen el destinatario final o el / los usuario (s) final (es) aquí identificado (s). No pueden ser revendidos, transferidos ni eliminados de otra manera, para cualquier otro país o a cualquier otra persona que no sea el destinatario final o el (los) usuario (s) final (es) autorizado (s), ya sea en su forma original o después de haber sido incorporados a otros artículos, sin obtener primero la aprobación del Gobierno de los EE. UU. de su ley y regulaciones.
This item is controlled by the U.S. government and authorized for export only to the country of ultimate destination for use by the ultimate consignee or end-user(s) herein identified. It may not be resold, transferred, or otherwise disposed of, to any other country or to any person other than the authorized ultimate consignee or end-user(s), either in their original form or after being incorporated into other items, without first obtaining approval from the U.S. government or as otherwise authorized by U.S. law and regulations.
N.º de producto: 093000007 BADGER ORDNANCE BLACK BOLT KNOB Ref Fabricante: 30631 El diámetro sobredimensionado y la longitud extendida proporcionan un control positivo del cerrojo para el ciclo sin errores de rifles tácticos y de banco de tiro. No más sujetar la manija del cerrojo con dos dedos para evitar el alcance de la campana. Proporciona la palanca adicional necesaria para despejar cartuchos atascados. El aluminio ligero mantiene el peso bajo. La instalación requiere mecanizado y roscado de la manija original del cerrojo. El pomo del cerrojo Mini incluye una llave de ½” para la extracción del alcance.
Oversize diameter and extended length and give positive bolt control for fumble-free cycling of tactical and benchrest rifles. No more holding the bolt handle with two fingers to clear the scope bell. Provides additional leverage needed to clear stuck rounds. Lightweight aluminum keeps weight down. Installation requires machining and threading of original bolt handle. Mini bolt knob includes ½” wrench for scope removal.
SPECS: 7075 T6 aluminum alloy, hardcoat anodized, matte black or gloss red finish. 1½" (4cm) long, .975" (24.7mm) diameter. 1.3 oz. (35 g) weight. Mini - Length – 1.21” Diameter – 0.90” Weight – 0.5 oz Gunsmith installation recommended. 5/16-24 TPI.
Más...
Pomo Extendido de Fácil Agarre para un Ciclado Positivo del Cerrojo
El diámetro sobredimensionado y la longitud extendida proporcionan un control positivo del cerrojo para el ciclo sin errores de rifles tácticos y de banco de tiro. No más sujetar la manija del cerrojo con dos dedos para evitar el alcance de la campana. Proporciona la palanca adicional necesaria para despejar cartuchos atascados. El aluminio ligero mantiene el peso bajo. La instalación requiere mecanizado y roscado de la manija original del cerrojo. El pomo del cerrojo Mini incluye una llave de ½” para la extracción del alcance.
ESPECIFICACIONES: Aleación de aluminio 7075 T6, anodizado duro, acabado mate negro o rojo brillante. 1½" (4cm) de largo, .975" (24.7mm) de diámetro. Peso de 1.3 oz. (35 g). Mini - Longitud – 1.21” Diámetro – 0.90” Peso – 0.5 oz Se recomienda instalación por un armero. 5/16-24 TPI.
Más...
Evaluaciones de clientes para BADGER ORDNANCE MINI TACTICAL BOLT KNOB
Número de evaluaciones: 7
De brownells.com: 7
Evaluación media: 4,9
Mini Tactical Bolt handle(17/06/2013)
Great product, fitted onto my Rem 700 in .204 to help with clearance from scope when cycling action. Had previously had a look at full sized knobs but they didn't fit with the look and function I was chasing. If you are half capable, the job can be done at home with a hacksaw, file and die of the correct thread size. I will be purchasing a couple more for both my long range rig and target rifle, which has a particularly stiff bolt after firing.
More leverage than ever.(15/09/2009)
This is a must for anyone. Not only tactical shooters. This knob allows you to remove stuck cases better, faster cycling on the bolt and an overall easier grip.
i was looking for something to replace the standard bolt knob on my remington 700P and had seen several rifles with this knob on them, and decided i wanted something similar. after looking at what all was available i decided on this one because of the size dimensions and shape.
i ordered through brownells and got a fantastic price and they were the only place that had them in stock. kudos to brownells on that.
after getting my bolt back from AZ Precision, and taking it to the range, i have to say this bolt makes a HUGE difference. working the bolt is easier as the knob is far easier to get a hold of and fits my hand a lot better, the length of the bolt handle is extended by over an inch giving you better leverage, and since the knob is aluminum it doesnt at any weight! it is PERFECT for the serious shooter looking for a way to improve the function of their rifle. it makes rapid bolt manipulation so much easier you wont beleive it until you feel it for yourself.
This is a very affordable and very great upgrade, and this particular part, from this seller at this price is just fantastic. cannot be beat!
I have recommended this to three other friends who have long rifles and all will be purchasing and having this installed based on how well it works on mine.
Great Product(07/12/2009)
Put it on 2 of my rifles exellent quality and also very good looking but the most important thing is it holds very well against the elements.
A HELP IN TACTICAL AND HUNTING(24/01/2010)
This knob is the defacto standard when going with an over sized bolt knob. Better leverage for opening the bolt in any situation. I installed the knob myself but this should really be installed by someone what has a mil and knows what he is doing. A lot of material has to be removed and a mil works so much better than the belt sander I used. It took about 2+ hours and is not for the inexperienced or faint of heart. The original bolt must be "made round" (.313) then threaded with approx. 1/2 inch removed from the end of the bolt handle so the new knob can be screwed and glued on all the way. When finished you will be pleased with the looks,feel and ease of use.
Excellent addition to a bolt gun(27/02/2010)
I recently installed this product on my sniper rifle and could not be happier with the outcome. I installed the knob myself using a combination of a dremel tool with a reinforced cutting wheel, bench grinder and hand files. It took me slightly less than an hour and a half to complete the alteration to the bolt handle. Definitely not for the inexperienced to install. This is a great addition to the Remington weapon system.
A well designed, quality product....!(18/12/2010)
I installed this bolt knob on a customer's M77 SS bolt handle. The cast SS Ruger bolt handle was tough to machine and thread but the final result was spectacular. These knobs were designed for the Remington 700 but I have used them successfully on many different makes of rifle bolts. I would recommend this product be installed by a qualified machinist or gunsmith to achieve the best results.
