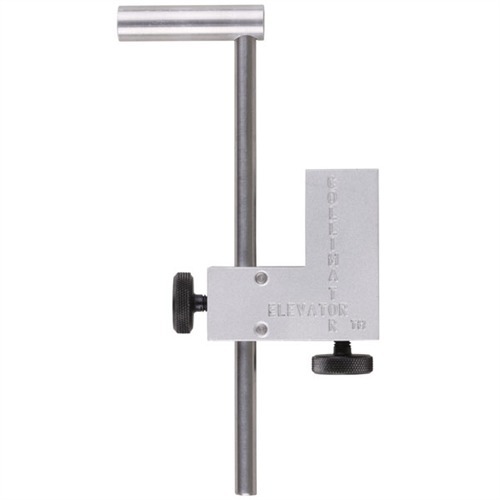

Adapts Your Collimator For Use With Large Objective Optics
Precision-manufactured device greatly extends the use and range of your optical collimator for rifles equipped with large objective scopes or scopes mounted in rings high above the centerline of the bore. Very easy to use: Mount your collimator onto the elevation arm, insert your bore spud in the elevator block, then lock with thumbscrew. Insert your spud into the bore and move elevation shaft up or down. Adjust the collimator so its grid view is near the center of the objective lens, and lock collimator height with second thumbscrew.
NOTE: Can be used with any bore spud or arbor 1/2" or smaller to include expandable arbors.
SPECS: Elevator Block - Aluminum. 1¾" (4.5cm) long, ¾"(1.9cm) wide, 1¾" high. Elevation Shaft - Stainless steel. ¼" (6.3mm) diameter. Elevation Arm - Aluminum. 3⁄8" (9.5mm) diameter. Includes instructions.Can be used with any bore spud or arbor 1/2" OD or smaller to include expandable arbors.
Más...
Adapta Tu Colimador Para Uso Con Ópticas de Gran Objetivo
Dispositivo de precisión fabricado que amplía enormemente el uso y el alcance de tu colimador óptico para rifles equipados con visores de gran objetivo o visores montados en anillos muy por encima de la línea central del cañón. Muy fácil de usar: Monta tu colimador en el brazo de elevación, inserta tu spud de cañón en el bloque elevador y luego asegúralo con el tornillo de mariposa. Inserta tu spud en el cañón y mueve el eje de elevación hacia arriba o hacia abajo. Ajusta el colimador para que su vista de rejilla esté cerca del centro de la lente objetivo y asegura la altura del colimador con el segundo tornillo de mariposa.
NOTA: Puede utilizarse con cualquier spud de cañón o árbol de 1/2" o menor, incluyendo los árboles expandibles.
ESPECIFICACIONES: Bloque Elevador - Aluminio. 1¾" (4.5cm) de largo, ¾"(1.9cm) de ancho, 1¾" de alto. Eje de Elevación - Acero inoxidable. ¼" (6.3mm) de diámetro. Brazo de Elevación - Aluminio. 3⁄8" (9.5mm) de diámetro. Incluye instrucciones.Puede utilizarse con cualquier spud de cañón o árbol de 1/2" OD o menor, incluyendo los árboles expandibles.
Más...
Evaluaciones de clientes para W. FREAR INNOVATIONS COLLIMATOR ELEVATOR
Número de evaluaciones: 4
De brownells.com: 4
Evaluación media: 4,8
Great Product(02/07/2013)
When I ordered this item I thought it was way over priced. But I was fed up with trying to bore sight my "modern sporting rifles" with their high scope placement over their bores.
My FNH SCAR 17S has it's scope 3.5" above the bore and this collimator elevator worked perfectly.
It's well made and worth every penny!
Highly recommended!
Large scope bore-sighting miracle(25/09/2015)
Well finally! Tried to formulate this type of tool at NRA summer school in Trinidad; but ran out of time. Struggled with large scopes here in the west with a Bushnell Bore sighter that couldn't accommodate the spud. Bought a laser tool that worked just o.k. given range/distance limitations of my shop til now. Looking through the catalog for alternatives for bore sighting noticed this tool and immediately ordered it and put it to use as soon as received. Worked perfectly and now I can readily bore sight the largest scopes that have been showing up in my shop even with the tallest rings and bases. Five stars fantastic design, materials, and very versatile, very easy to use.
Absolutely Top Notch(08/12/2015)
If you need to boresight a rifle, especially a gas gun with an elevated scope/mount (M1A, AR-15, etc.), this is the tool for you. Used this elevator to boresight numerous M1A which require a scope mount which sits approx. 2.375" above the bore. This device makes using an optical collimator a breeze!
Well thought out, well designed and quality craftmanship all in the same package. The BEST part? Made in the U.S.A.
I like the design...(15/08/2018)
This elevator was packaged well and easy to use. I really like how the design has all the specific details covered. I can see how these things can be very robust; however, the one I received will be returned very soon. The horizontal rod on the elevator shaft moves, not much, but it does move. This allows the cross hairs in the optic to move from one side to the other very discretely. Unfortunately, I learned this on the first three rifles I used it on and needless to say, the customer wasn't very happy. I will be ordering another one as soon as my return is completed and hopefully it will be better.
N.º de producto: 100002512 W. FREAR INNOVATIONS COLLIMATOR ELEVATOR Ref Fabricante: COLLELEV Dispositivo de precisión fabricado que amplía enormemente el uso y el alcance de tu colimador óptico para rifles equipados con visores de gran objetivo o visores montados en anillos muy por encima de la línea central del cañón. Muy fácil de usar: Monta tu colimador en el brazo de elevación, inserta tu spud de cañón en el bloque elevador y luego asegúralo con el tornillo de mariposa. Inserta tu spud en el cañón y mueve el eje de elevación hacia arriba o hacia abajo. Ajusta el colimador para que su vista de rejilla esté cerca del centro de la lente objetivo y asegura la altura del colimador con el segundo tornillo de mariposa.
El COLLIMATOR ELEVATOR amplía el uso y alcance de tu colimador óptico para rifles con visores grandes o montados en anillos altos.
Fácil de usar: monta el colimador en el brazo de elevación, inserta el spud de cañón en el bloque elevador y ajusta la altura con tornillos de mariposa.
Especificaciones: Bloque Elevador de aluminio, Eje de Elevación de acero inoxidable y Brazo de Elevación de aluminio. Compatible con spuds de cañón o árboles de 1/2" OD o menor.
Atributos
Peso de entrega: 0,113kgAltura de envío: 5mmAncho de envío: 58mmLongitud de envío: 152mm
Detalles del artículo
Hecho en USA
Optimiza tu colimador óptico con el COLLIMATOR ELEVATOR de W. FREAR INNOVATIONS. 🎯 Fácil de usar y compatible con varios spuds. ¡Mejora tu precisión!
