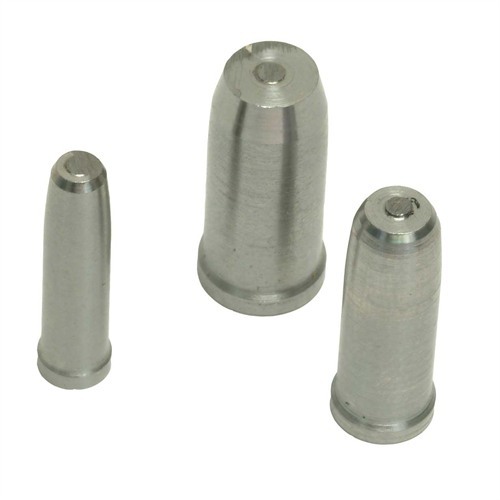

The Sinclair Chamber Length Gauges are designed so the handloader can determine the true length of his rifle's chamber when measuring from the bolt face to the end of the chamber's neck. This measurement will tell you how much excess case length your chamber may have over published trim lengths in reloading handbooks. The Sinclair Gauges are inserted into a fired, unprimed shortened case and then chambered into your rifle. The insert pushes back into the case when it contacts the end of your chamber. You then extract the case and measure the overall length. The gauge is made of 12L14 soft steel so it will not damage your chamber. Step-by-step instructions accompany each gauge. The gauges can be used over and over again. The differences between published trim lengths and the actual length of your chamber can be quite significant. You could be over trimming your cases by .030 inch or more. NOTE: The 22 caliber gauge will not work on thin-necked cases such as the 22 Hornet, 218 Bee, or cartridges based on these cases. The 30 caliber gauge will not work on teh 30-30 Winchester. None of the gauges listed will work on tight-necked chambers except for the G-243T. Should not be used in handguns, semi automatic rifles, lever actions rifles and pump action rifles.
Los medidores de longitud de cámara Sinclair están diseñados para que el recargador pueda determinar la longitud real de la cámara de su rifle al medir desde la cara del cerrojo hasta el final del cuello de la cámara. Esta medición te indicará cuánto exceso de longitud de cartucho puede tener tu cámara en comparación con las longitudes de recorte publicadas en los manuales de recarga. Los medidores Sinclair se insertan en un cartucho acortado, disparado y sin cebar, y luego se colocan en tu rifle. El inserto se empuja hacia atrás en el cartucho cuando contacta con el final de tu cámara. Luego, extraes el cartucho y mides la longitud total. El medidor está hecho de acero suave 12L14, por lo que no dañará tu cámara. Instrucciones paso a paso acompañan a cada medidor. Los medidores se pueden usar una y otra vez. Las diferencias entre las longitudes de recorte publicadas y la longitud real de tu cámara pueden ser bastante significativas. Podrías estar recortando en exceso tus cartuchos en .030 pulgadas o más. NOTA: El medidor de calibre 22 no funcionará en cartuchos de cuello delgado como el 22 Hornet, 218 Bee o cartuchos basados en estos casos. El medidor de calibre 30 no funcionará en el 30-30 Winchester. Ninguno de los medidores listados funcionará en cámaras de cuello ajustado, excepto el G-243T. No debe usarse en pistolas, rifles semiautomáticos, rifles de acción de palanca y rifles de acción de bomba.
